Push Button

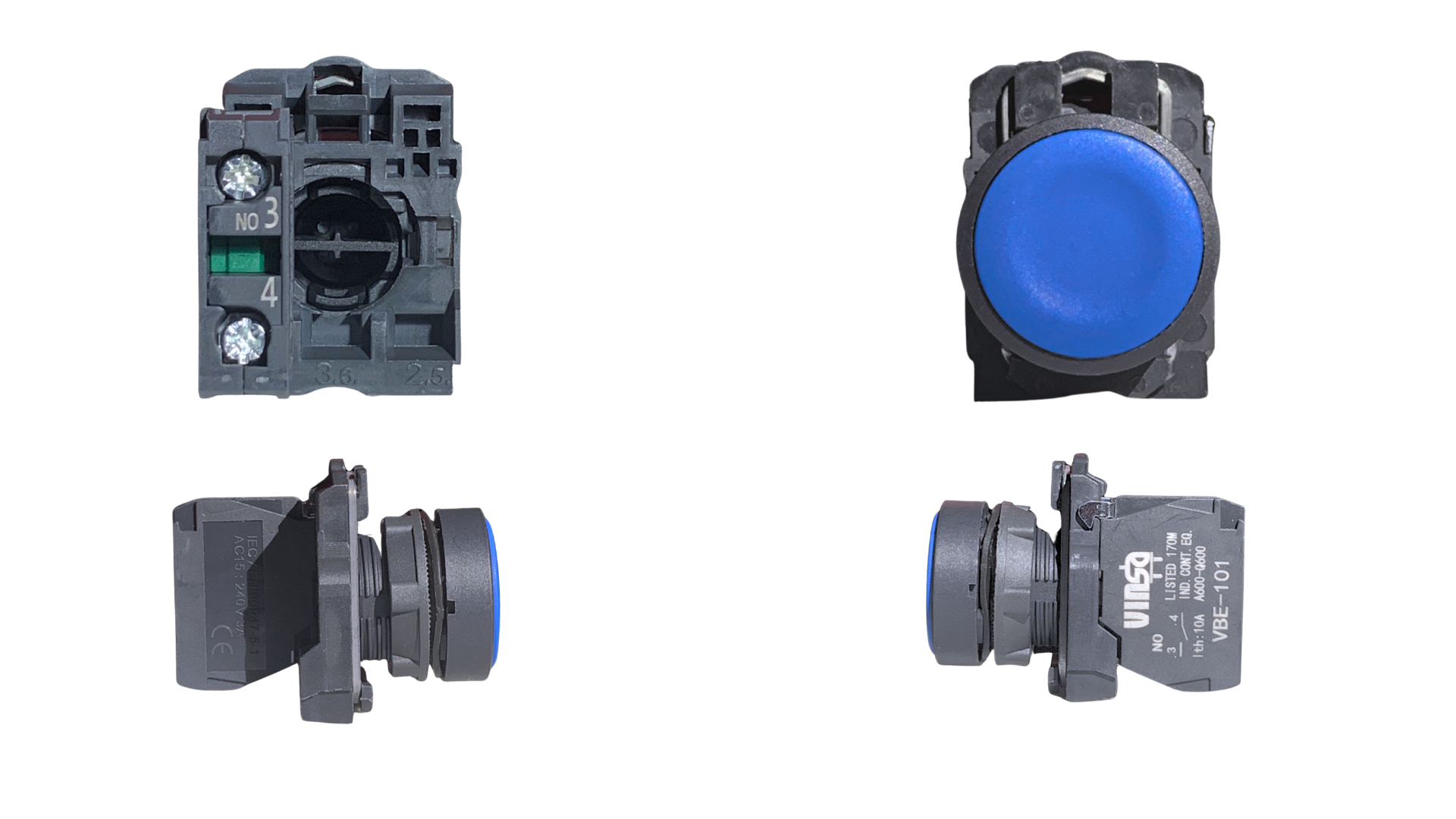

Flush Button Spring Return Momentary Blue 1 N/O
Kode Produk:
KB5AA61
Tipe
Flush Button Spring Return Momentary
Seri
KB 5 Series
Spesifikasi Teknis
Warna :
Biru
Tegangan :
1N/O
Range of product :
Harmony KB5
Product or component type :
Push-Button
Bezel material :
Plastic Dark Grey Plastic
Head type :
Standard
Fixing collar material :
Plastik
Mounting Diameter :
22.5 mm
Type of operator :
Spring return momentary
Operator profile :
Blue flush, unmarked
Tipe dan Komposisi Kontak :
1 NO
Contact operation :
Slow-break
Connections - terminals :
Screw clamp terminals, <= 2 x 1.5 mm2 with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm2 without cable end IEC 60947-1
Tinggi :
40 mm
Lebar :
27 mm
Kedalaman :
51 mm
Berat Bersih :
0.039 kg
Contacts usage :
Standard contacts
Positive opening :
Without
Operating travel :
0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel)
Operating force :
3.8 N NO changing electrical state
Mechanical Durability :
1000000 cycles
Contacts material :
Silver alloy (Ag/Ni)
[Ith] conventional free air thermal current :
10 A IEC 60947-5-1
[Ui] rated insulation voltage :
600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage :
6 kV IEC 60947-1
IP degree of protection :
IP55
IK degree of protection :
IK03 conforming to IEC 50102
Warranty (in months) :
12
Tertarik dengan Produk Ini?
Hubungi kami untuk harga dan ketersediaan
